TopLine Super XL

Multiva TopLine Super XL is a durable and versatile harrow representing a new way of thinking considering seedbed cultivation. TopLine Super XL provides the user unparalled flexibility concerning the challenges of different drilling methods and cultivation conditions. This harrow can be used for light stubble work as well as traditional seedbed cultivation in ploughed or cultivated soil. This enables seedbed preparation and shallow stubble-cultivation in all conditions using this single machine. The strong tines ensure a high-quality result in all conditions this is even through research. TopLine Super XL equals a boost in efficiency, the heavy frame is designed for working speeds of up to 15 km/t .

Maximum durability and capacity
9 tine axles & exceptional long frame
12x65 TerraSuper tines
For light stubble work, ploughed or cultivated soil
6 to 14,5 m working width

Exceptional frame structure

9 tine axles, 4.1m frame length and triple-bar frame structure.
The long frame and the optimal distribution of the tines ensure a powerful performance even on hard clay soil types after harvest. The flow through the machine ensures a very good mixing and even work result. The strength and weight of the frame also allows for unprecedented working speeds, even speeds of up to 15 km/h is possible.

The widest offering on the market

From 6 to 14.5 m working width. The product offering is compatible with all farm sizes. 7 different working widths from 6-14,5 m are available to ensure the perfect setup for all customers. The 6 and 7 m versions have a narrow transport width of only 3m, making them easy to transport on public roads. The largest 13 and 14,5 m harrows are utilizing an impressive double folding system to keep the machines safe and maneuverable on the road.

Unparalleled versatility

For light stubble work, ploughed or cultivated soil. The unique design of the harrow ensures a very versatile machine that will work in ploughed and cultivated soils as well as directly in the stubble. To increase flow in conditions with a lot of plant residue, the harrow can even be ordered with 12 cm tine spacing allowing more material to pass. In addition, the increased height of the tine also helps reducing blockages.

Organic farming/weed control

The TopLine Super XL can be fitted with a goosefoot tine point for a straight cut.

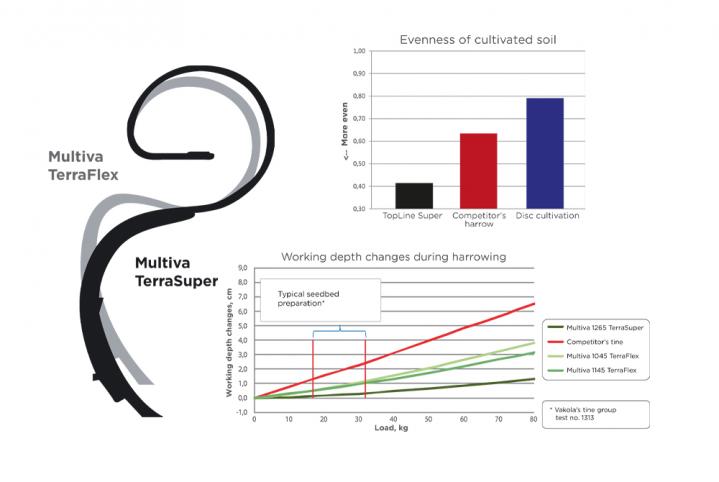

TerraSuper tines

The well proven and strong 12x65 mm TerraSuper tine brings more clearance and strength compared to a traditional s-tine. The attack angle of the tine make it penetrate all soil types even the hardest ones. The TerraSuper tine is known for the good mixing effect is achieved and a superior depth stability due to the weight and shape of the tine. The tine point is mounted straight under the attachment point on the harrow frame => minimal deviations in working depth!

Wide flotation tyres and strong hubs

Large tire size 340/55-16 is standard. Big flotation tires keep the rolling resistance at a minimum. The dimension of the tires also helps combating harmful soil compaction, especially relevant when working in wet and sticky conditions. The TopLine Super XL utilizes durable axles and hubs benefitting the customer with a long-term use.

Front support wheels

To increase stability at higher speeds when performing shallow cultivation work, the TopLine Super XL can be equipped with front support wheels. The 13 and 14.5 m versions come with one front support wheel mounted in each side section as a standard feature. For the other models, the wheels are available as optional equipment. On the 13 and 14.5 m versions, even an extra wheel on each side is optional if needed.

10 cm tine spacing as standard for perfect seedbed

All Topline Super XL comes with a tine spacing of 10 cm as standard. This setup is optimal for the customer looking for a versatile machine but is prioritizing a very good seedbed result in cultivated or ploughed conditions.

12 cm tine spacing to allow more straw or plant residues

The 12 cm tine spacing is optional and allows for more plant material to pass through the frame. The wider tine spacing is more targeted to customers primarily looking for a light stubble cultivator or for organic farmers wanting to combat weeds using the goosefoot tine point.

Brakes

In order to meet the local traffic legislations in different markets, a broad selection of brakes is available.
Different options are offered for the individual harrow models.

Main accessories

Multiva harrows can be fitted with various accessories to tailor the machine to specific needs.

Standard accessories

TopLine Super XL models come with the following equipment as standard.

Hydraulic front levelling board

The hydraulic front levelling board consists of strong 10x80mm tines mounted with the unique and aggressive notched levelling tine point.

Rear light kit

A light kit is included in the basic machine. The default light kit includes rear lights and big triangle to symbolize slow moving vehicle.

Standard tine points

The strong TerraSuper tines are mounted with a durable 60mm wide and 8mm thick tine point. To boost the lifetime of the point, it can be turned and worn from both ends.

Rear accessories

Rear accessories can be selected based on the farm’s soils, climate, and cultivation needs. Two of the following accessories are possible at the same time and can be varied according to the needs.

Hydraulic levelling board

A rear levelling board is available. The levelling board is controlled by separate hydraulics easing the adjustment. A depth scale is mounted in order to increase the ease of use.

Cage roller

Spring-loaded cage roller for effective crumbling. The cage roller has a small diameter and aggressive design to ensure a good cutting and crumbling effect. High strength steel is used and in combination with industry leading bearings the cage roller will bring trouble-free operation.

2-row rear harrow

The unique 2-row rear harrow allows more plant residue to pass and also increase the levelling effect and overall finish of the seedbed. The rear harrow can be adjusted without the use of special tools and even has a built-in safety feature ensuring the harrow to move forward if reversing against and obstacle.

Optional accessories

Goosefeet tine points

Hydraulic or pneumatic brake

Full wide front levelling board

Track loosener kit

Rear hitch

Light- and reflector kit

Carbide tine points

Click here to learn more about our carbide parts

Spare wheel

Stabilizer bar for rear levelling board

Technical specifications

TopLine Super XL	600	700	800	900	1000	1250	1500
Number of tines	59	67	77	87	101	129	143
Tine spacing, mm	100	100	100	100	100	100	100
Number of tine axles	9	9	9	9	9	9	9
Working width, cm	600	680	780	880	1000	1300	1450
Frame length, cm	410	410	410	410	410	410	410
Transportation width, cm	300	300	360	360	440	440	440
Transportation height, cm	310	350	380	425	440	440	440
Power requirement, hp	140	180	220	250	280	360	400
Tyres	340/55-16	340/55-16	340/55-16	340/55-16	340/55-16	340/55-16	340/55-16
Number of tyres	8	8	8	8	8	8	8
Weight, kg	4230	4880	5650	6090	7370	9320	11025

User story

Veikko Kuusinen The Metsola farm in Pertteli, Finland, mainly produces cereals, such as wheat, barley and oats but also rapeseed and hayseed. The Metsola farm features soil types ranging from silt to loam clay. In the spring, Kuusinen cultivates the stubble directly with the TopLine Super.
Kuusinen utilizes the Multiva DiscMaster disc cultivator as well as the TopLine Super XL harrow. He is pleased with his harrow. ”TopLine Super XL provides excellent flowing through of plant residue, and it is heavy enough for reaching theoptimal harrowing depth. The harrowing result is even, and the harrow runs steadily along the soil,” Kuusinen says. ”Based on my experience, I find that traditional s-tine harrows are too light for my farm’s soil and cultivation methods,” he adds.
