Multiva Forte EVO seeders represent the most reliable, versatile, and exact seeding method in the markets. FX coulter is developed to ensure the best agronomical results in combination with reliability and service-free designs.
Seed and fertilizer are led to the soil through the same coulter but separately to different vertical positions. Multiva Forte can be used to seed plowed and cultivated fields as well as in no-till seeding. The choice of seeding method can be made flexibly according to the conditions. The new EVO model features a more flexible feeding system in terms of total volumes as well as higher accuracy. Also, the hopper volume has been increased from the previous.
Quick access to fertilizer
No-till, min-till or plowed fields
Service-free coulter design
Low tractor power requirement
The most versatile controller options
Success in all conditions
Multiva Forte EVO seeding method is an excellent fit for farms with varying conditions and different farming methods. No-till seeding can be made even in the heaviest of soils thanks to the double-disc constructions and high coulter pressure. In the cultivated soils the seed can be placed optimally to the cultivation bottom exactly and evenly as desired.More details

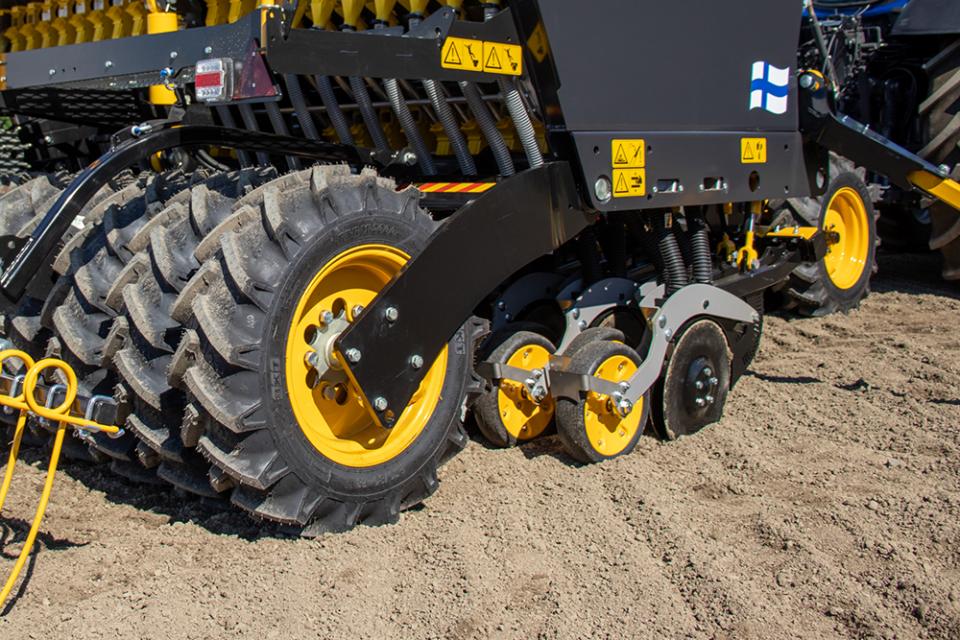

Versatile FX coulter
Multiva FX coulter is developed to offer unprecedented accuracy in seeding, durability and care-free hectares. The double-disc coulters with large disc diameter are very wear-resistant and service-free. The coulter doesn’t have any points that would require lubrication.More details
Cost efficient seeding
The double-disc coulter cuts the soil efficiently and there is fewer coulters in the Forte models than in many traditional seeders. In addition, the transport wheels have a large diameter resulting in low rolling resistance. Due to these the power requirement and the fuel consumption are low with Forte seeders.

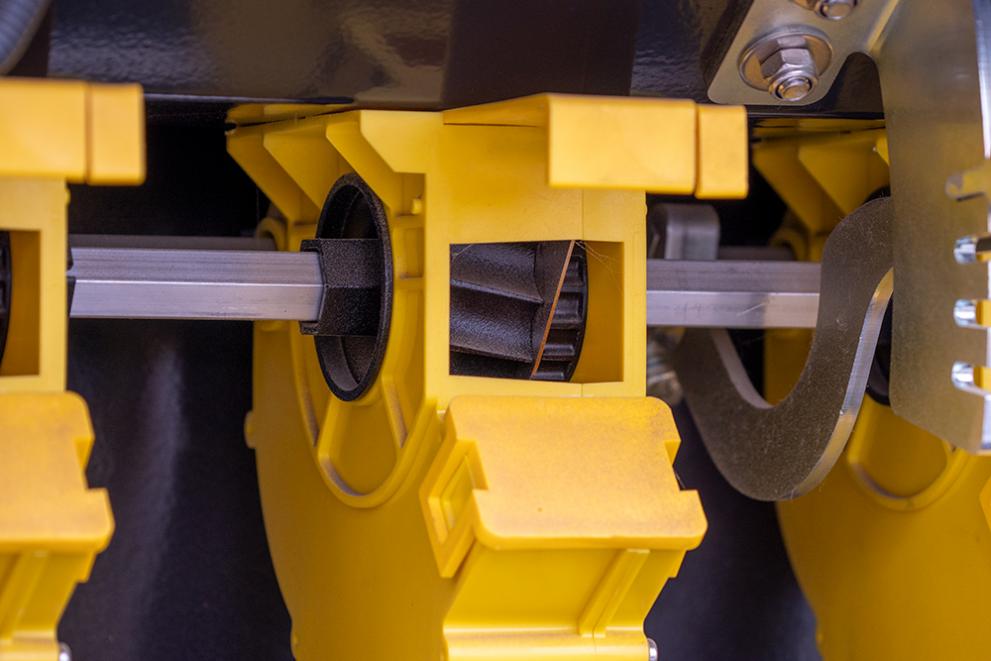

Precise adjustments with the renewed feeder
In Multiva EVO seeders the seeding rate is controlled by adjusting the rotational speed of the seeding axles with help of individual gearboxes for all hoppers. The generously dimensioned feeder allows great seeding rates to be used. The unique design of the two -cell feeder makes the usage of very small seeding rates eg. with oilseed rape extremely precise. The change from seeding bigger seeds to small seeds is very easy to do by closing flaps in the two -cell feeder thus leaving only the fine seed roller in use. The window in the feeder unit makes observation or cleaning easy.

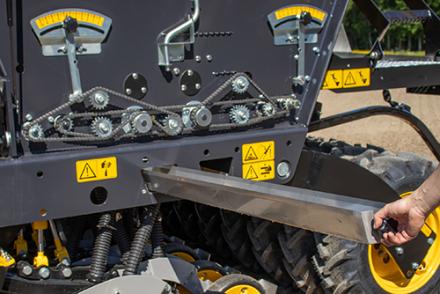

Fast and easy calibration
In Multiva seeders calibration is easy and effortless. The calibration is made simply by test crank. If the seeder is equipped with remote control of seed or fertilizer the calibration result is given to the controller making the setup even easier. The stainless-steel calibration trays are in two pieces for easy handling. They are inserted into the tray holders separately for seed and fertilizer on the machine's left side. The trays are handy to store in the same tray holders for easy operation and protection. The new feeding system and transmission in Multiva seeders are very precise.

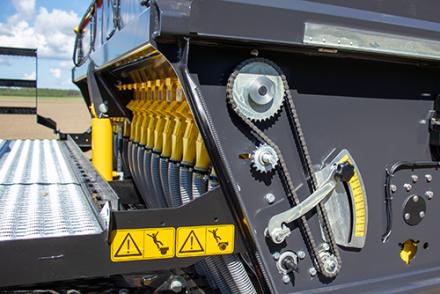

Smallseed / start fertilizer equipment
In the new Multiva seeders, the small seed / start fertilizer hopper is completely redesigned. The equipment is integrated into the main hopper but thanks to the movable wall even the small seed hopper's volume can be utilized as part of the main hopper if not in use. The material seeded from the small seed hopper can be flexibly placed either into the seed row or behind the coulters on top of the soil. The small seed / start fertilizer feeder is equipped with two cell feeder units and a gearbox for very precise seeding settings. A wide variety of different materials can be seeded with the equipment. A pendulum dispenser is available for special light grass seeds to ensure the continuous flow of material.

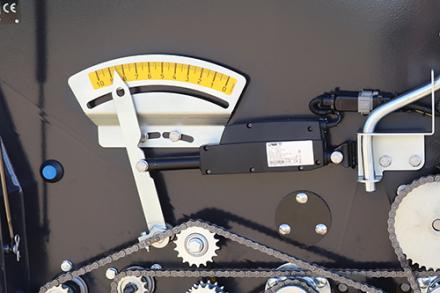

Remote control of fertilizer or seed
With the remote control of seed or fertilizer, the usage of inputs can be optimized for the soil type or conditions. The amount of seed or fertilizer seeded can be controlled easily from the controller. In the SEEDPILOT ISOBUS controller, the remote control can be adjusted automatically as variable rate application according to premade prescription maps with the help of GPS.
Multiva seeders are equipped with open and generously dimensioned feeding units that allow very large amounts of material to flow through. The fertilizer hopper is equipped with sieves and the metering rollers are with aggressive notching to allow great volumes of organic fertilizer per hectare to be used. Seeder can be equipped with fertilizer dispenser axle that ensures steady flow of material with high rates of feeding. With Multiva seeders different crops can be seeded to different depths from different coulters at the same time. As an example beans from the fertilizer hopper and small seeds from the seed hopper. This is possible thanks to the independent depth adjustment for the coulters.

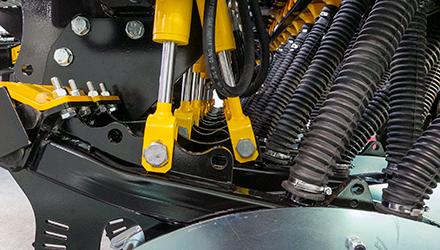

Easy to adjust coulter pressure
The coulter pressure is adjusted directly with tractor hydraulics between 50-250kg. The coulter pressure is easy to monitor as an example from the SeedPilot terminal. Each coulter has their own pressure cylinder which ensures a stabile seeding depth regardless of uneven fields surfaces. With the hydraulic coulter pressure system, smooth coulter action is achieved thus very precise seed placement is achieved.

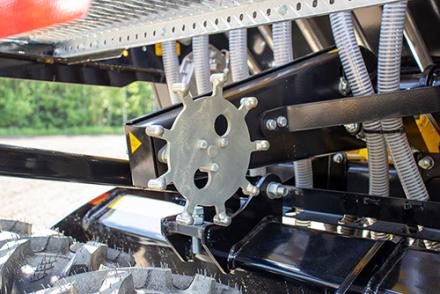

In Multiva EVO seeders a unique driveline is used for the seed and fertilizer metering. The power for the driveline is produced in the transport wheels with the help of a wheel drive system. The system ensures an exact and uninterrupted power transmission in all conditions. The soil types or varying conditions don’t affect the rotational speed of the seed metering. The simple system is reliable and durable.

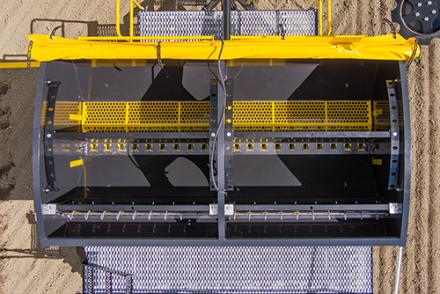

Great seeding capacity
Multiva Forte seeders have large hoppers and high road transport speeds can be used even with hoppers full. With Multiva seeder the work is easy and effortless and the operator can focus fully on controlling the machine. The middle wall of the hopper can be adjusted and the tarp is self-rolling.
Additional features with accessories
Multiva seeders can be equipped according to the customer's needs with a wide range of accessories.
|Working width, cm||300||400|
|Transportation width, cm||300||409|
|Hopper filling height, cm||215||215|
|Hopper volume, l||3800||5300|
|Small seed hopper volume, l||370||510|
|Coulter pressure, kg||50-250||50-250|
|Number of coulters||20||26|
|Row spacing, mm||150||154|
|Work speed, km/h||8-12||8-12|
|Power requirement, hp||90||120|
