Hydraulic front levelling board
The hydraulic front levelling board consists of strong 10x80mm tines mounted with the unique and aggressive notched levelling tine point.
OPTIMA EVO
Multiva Optima Evo is a new generation of the classic seedbed cultivator for all soil types. The ingenious and spacious frame structure, a new wheel sizes and sturdy tines ensure excellent performance in all conditions.
The Optima name reflects a long-term commitment to quality and durability, tested on thousands of farms for several years and proven to work on both lighter soil types as well as clay.
-
An innovative harrow for all soil types
-
7 tine axles for a uniform cultivation result
-
6 to 10 m working width
-
Narrow transport width
-
Pioneering wheel construction
-
Most effective rear tools on the market
Large wheels for increased stability
The new wheel design makes the Optima Evo more stable on the road and light on its feet in the field.
Read more
Spacious frame
Optima EVO harrows have 7 tine axles, and a frame length of 3 meters, providing an unmatched levelling effect and clog-proof operation. The two oversized lateral frame elements bring exceptional stability, resulting in a harrow that is fit for tough conditions.
Easy and secure working depth adjustment
The working depth setting is easy to use, accurate and adjustable at 5 mm increments.
Even working depth
The rigid and durable Multiva TerraFlex tine ensures an even seedbed and cultivation layer, making conditions for sprouting most favorable. Optima EVO is a heavy harrow, but large tyres keep the set working depth regardless of the soil type.
Main accessories
Multiva harrows can be fitted with various accessories to tailor the machine to specific needs.
Standard accessories
Optima EVO models come with the following equipment as standard.

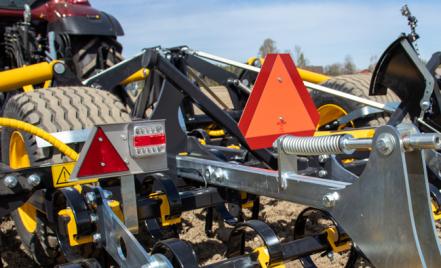

Rear light kit
A light kit is included in the basic machine. The default light kit includes rear lights and big triangle to symbolize slow moving vehicle.
Standard tine points
The aggressive TerraFlex tines are mounted with a durable 43 mm wide and 8 mm thick tine point. To boost the lifetime of the point, it can be turned and worn from both ends.
Rear accessories
Rear accessories can be selected based on the farm’s soils, climate, and cultivation needs. Two of the following accessories are possible at the same time and can be varied according to the needs.
Hydraulic rear levelling board
A rear levelling board is available. The levelling board is controlled by separate hydraulics easing the adjustment. A depth scale is mounted in order to increase the ease of use.
Cage roller
Spring-loaded cage roller for effective crumbling. The cage roller has a small diameter and aggressive design to ensure a good cutting and crumbling effect. High strength steel is used and in combination with industry leading bearings the cage roller will bring trouble-free operation.
Two-row rear harrow
The unique 2-row rear harrow allows more plant residue to pass and also increase the levelling effect and overall finish of the seedbed. The rear harrow can be adjusted without the use of special tools and even has a built-in safety feature ensuring the harrow to move forward if reversing against and obstacle.

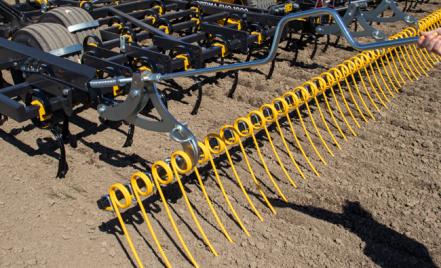

1-row rear harrow
The rear harrow has been updated to a new and more user-friendly design. The pressure of the rear harrow and cultivation effect can now be adjusted stepless, improving the work result. The One row rear harrow ensures fine soil around the seed and a coarser structure on the top of the soil.
Rear levelling board - cage roller combination
The combination of rear levelling board and cage roller improves the amount of fine soil in the seedbed. After the tine section, the levelling board will create an even surface for the rear cage roller to break into smaller clods due to its aggressive design. A perfect combination for customers growing high value crops like sugar beets or vegetables.
Optional accessories
Full wide front levelling board
Stabilizer bar for rear levelling board
Track loosener kit
New break system
Rear hitch to attach a field roller
Light- and reflector kit
Carbide tine points
Click here to learn more about our carbide parts
Spare wheel
Different towing eyes
Technical specifications
| Optima EVO | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|
| Number of tines | 79 | 91 | 105 | 117 | 130 |
| Tine spacing, mm | 75 | 75 | 75 | 75 | 75 |
| Number of tine axles | 7 | 7 | 7 | 7 | 7 |
| Working width, cm | 590 | 690 | 790 | 890 | 980 |
| Frame length, cm | 300 | 300 | 300 | 300 | 300 |
| Transportation width, cm | 300 | 300 | 300 | 399 | 399 |
| Transportation height, cm | 320 | 360 | 400 | 400 | 420 |
| Power requirement, hp* | 100 | 120 | 140 | 160 | 200 |
| Tyres wing section | 250/65-14.5 | 250/65-14.5 | 300/65-12 | 300/65-12 | 300/65-12 |
| Tyres center section | 380/55-17 | 380/55-17 | 480/45-17 | 480/45-17 | 480/45-17 |
| Number of tyres | 6 | 6 | 6 | 6 | 6 |
| Weight, kg** | 3100 | 3500 | 4450 | 4850 | 5190 |
* Traction power requirement is indicative and is defined for a working depth of 5 cm
** Incl. rear harrow and levelling board
